Geotechnical Survey in Bangladesh

In Bangladesh, where rapid urbanization and infrastructural development are at an all-time high, understanding the soil and subsurface conditions has become essential for construction projects. This is where the geotechnical survey in Bangladesh plays a pivotal role. From designing safe buildings to ensuring the stability of bridges and roads, geotechnical surveys provide critical insights that determine the success of any construction venture. Iconic Engineering Limited offers expert geotechnical survey services to ensure safe and reliable construction projects. Our team conducts comprehensive soil testing, site investigations, and foundation analysis to evaluate soil properties, bearing capacity, and ground conditions. These insights help engineers and developers design strong foundations, prevent structural failures, and ensure long-term project stability.

What is a Geotechnical Survey?

A geotechnical survey is a detailed investigation of the physical properties of soil, rock, groundwater, and other subsurface conditions. The primary goal of this survey is to determine the suitability of the ground for construction and to design foundations that are both safe and cost-effective.

During a geotechnical survey, engineers collect soil samples, perform lab tests, and analyze the subsurface conditions. The findings help in understanding soil bearing capacity, groundwater levels, potential soil settlement, and risks like liquefaction, landslides, or erosion.

Importance of Geotechnical Survey in Bangladesh

Bangladesh, being a deltaic country with extensive floodplains, rivers, and a high water table, presents unique challenges for construction projects. Here are some key reasons why geotechnical survey in Bangladesh is indispensable:

1. Foundation Safety: Poor soil conditions can lead to structural failures. Geotechnical surveys help in designing foundations suitable for the local soil type.

2. Flood and Water Table Management: With Bangladesh prone to flooding, understanding groundwater levels is critical for safe and durable construction.

3. Seismic Considerations: Bangladesh lies in a seismically active zone. Geotechnical studies assess soil behavior under earthquake loading.

4. Cost Efficiency: Proper soil investigation prevents over-designing or under-designing foundations, saving construction costs.

5. Environmental Protection: Geotechnical surveys assess the impact of construction on soil stability and surrounding ecosystems.

Types of Geotechnical Surveys in Bangladesh

There are several types of geotechnical surveys, depending on the project requirements:

1. Soil Investigation

Soil investigation is the most common geotechnical survey in Bangladesh. Engineers conduct borehole drilling to collect soil samples and test them for properties such as:

• Grain size distribution

• Plasticity and cohesion

• Shear strength

• Compaction characteristics

• Permeability

This data helps in determining the soil's bearing capacity and its suitability for different types of structures.

2. Rock and Subsurface Survey

For large infrastructures like bridges, high-rise buildings, and dams, understanding the rock formations beneath the surface is critical. Techniques include:

• Core drilling

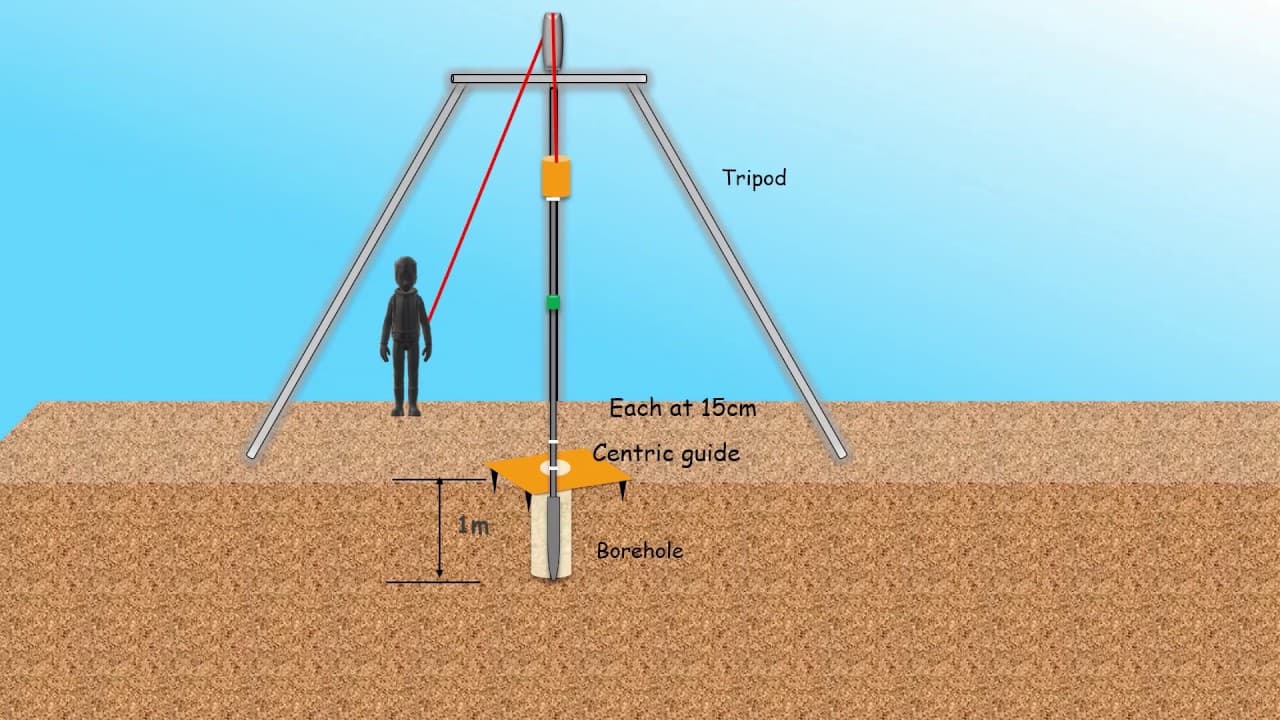

• Standard Penetration Tests (SPT)

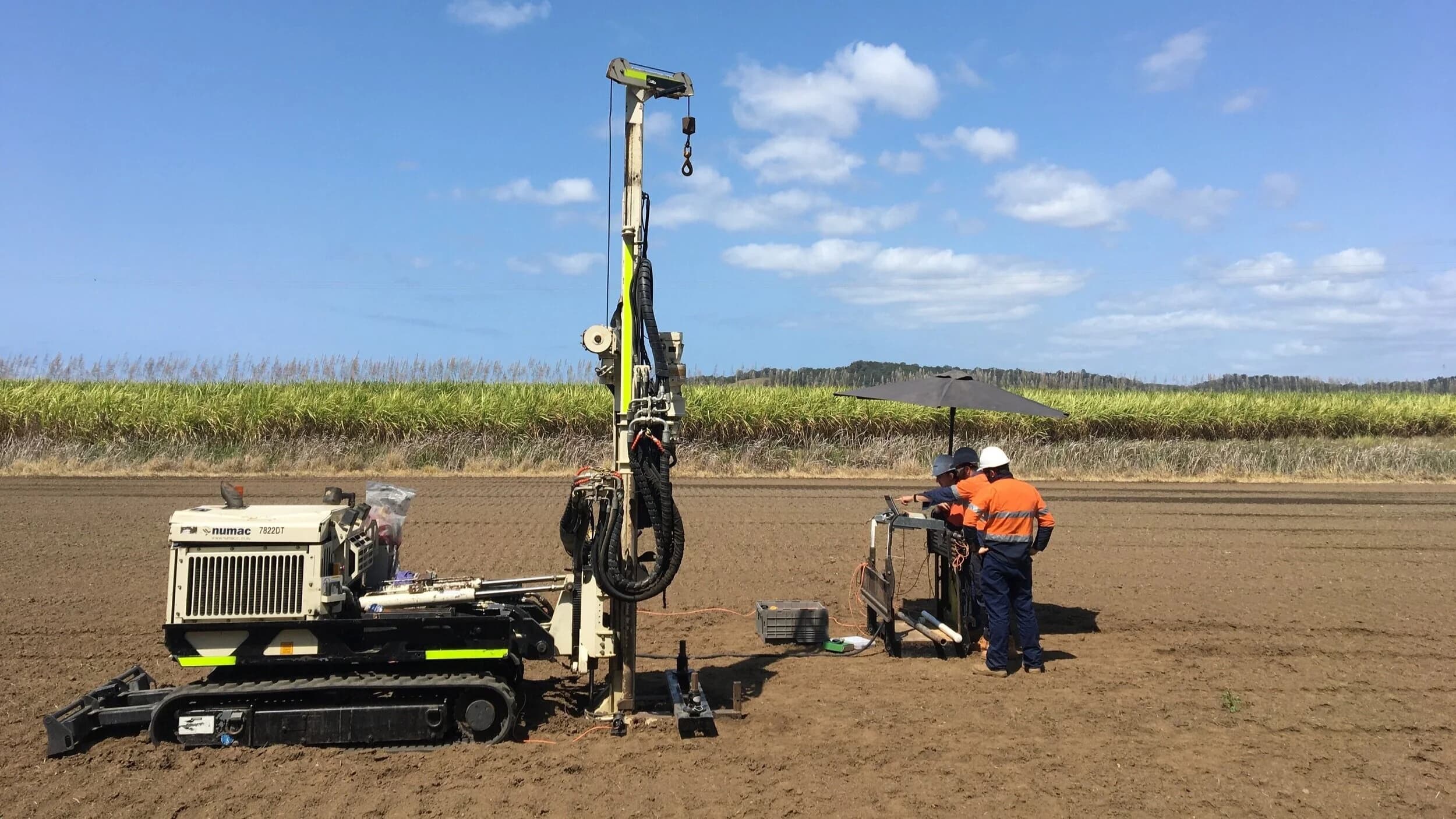

• Cone Penetration Tests (CPT)

These methods provide insights into the strength and stability of the underlying rock layers.

3. Groundwater Survey

Bangladesh's high water table can significantly impact foundation design. Groundwater surveys involve monitoring wells, piezometers, and pumping tests to determine water table fluctuations and hydrostatic pressures.

4. Geophysical Survey

Geophysical surveys are non-invasive methods to assess subsurface conditions. Common techniques include:

• Electrical Resistivity Tomography (ERT)

• Seismic Refraction and Reflection

• Ground Penetrating Radar (GPR)

These methods help detect voids, soil layering, and underground water flow without extensive drilling.

The Geotechnical Survey Process in Bangladesh

Conducting a geotechnical survey in Bangladesh involves several systematic steps:

Step 1: Site Reconnaissance

Before any drilling, engineers visit the site to understand the terrain, topography, and accessibility. They also gather historical data on soil conditions, nearby construction projects, and environmental factors.

Step 2: Borehole Drilling and Soil Sampling

Engineers drill boreholes at strategic locations to collect soil and rock samples. The depth and number of boreholes depend on the project size and complexity.

Step 3: Laboratory Testing

Collected samples are analyzed in laboratories to measure properties such as:

• Moisture content

• Shear strength

• Compressibility

• Soil classification

Step 4: Data Analysis and Reporting

Engineers interpret the field and laboratory data to prepare detailed geotechnical reports. These reports include recommendations for foundation design, construction methods, and potential mitigation measures for soil-related risks.

Applications of Geotechnical Surveys in Bangladesh

Geotechnical surveys are essential for various sectors in Bangladesh:

1. Construction of Buildings

High-rise buildings, residential complexes, and commercial structures require detailed soil analysis to ensure stable foundations. Geotechnical surveys help prevent settlement, tilting, and structural failures.

2. Infrastructure Projects

Bridges, roads, highways, and railways depend heavily on accurate soil data. Geotechnical surveys in Bangladesh ensure that these infrastructures withstand environmental and load stresses.

3. Industrial Facilities

Factories, warehouses, and power plants often require heavy-duty foundations. Geotechnical investigations determine whether the soil can bear the load and suggest foundation designs accordingly.

4. Flood and Erosion Control

Dams, embankments, and riverbank protection projects rely on geotechnical surveys to assess soil stability and prevent erosion or structural damage.

Challenges of Conducting Geotechnical Surveys in Bangladesh

While geotechnical surveys are crucial, Bangladesh presents several challenges:

1. High Water Table: Frequent flooding complicates soil testing and sampling.

2. Soft Deltaic Soils: Many areas have soft, compressible clay, which can lead to foundation settlement.

3. Urban Congestion: Limited space in cities like Dhaka and Chattogram makes borehole drilling difficult.

4. Limited Awareness: Some developers overlook geotechnical surveys due to cost or time constraints, risking long-term structural issues.

Despite these challenges, hiring experienced geotechnical consultants ensures accurate and reliable survey results.

Choosing a Geotechnical Survey Company in Bangladesh

Selecting the right company for geotechnical survey in Bangladesh is critical. Consider the following factors:

• Experience and Expertise: Look for companies with a proven track record in similar projects.

• Equipment and Technology: Advanced tools like CPT, GPR, and ERT provide precise results.

• Professional Certifications: Ensure the company employs certified geotechnical engineers.

• Detailed Reporting: A comprehensive geotechnical report with actionable recommendations is essential.

Future of Geotechnical Surveys in Bangladesh

As Bangladesh continues to grow, geotechnical surveys will become increasingly important. Emerging technologies, such as 3D subsurface mapping, drone-assisted surveys, and real-time soil monitoring, are likely to revolutionize the industry. Additionally, sustainable construction practices and risk mitigation strategies will further highlight the value of accurate geotechnical surveys.

Conclusion

A geotechnical survey in Bangladesh is more than just a preliminary investigation; it is the foundation of safe, durable, and cost-effective construction. Whether for high-rise buildings, bridges, industrial facilities, or flood control projects, understanding the soil and subsurface conditions is crucial.

Investing in professional geotechnical surveys ensures that projects not only comply with safety standards but also optimize construction costs and mitigate risks associated with Bangladesh’s unique soil and environmental conditions. As urbanization and infrastructure development continue to rise, geotechnical surveys will remain an indispensable part of the construction landscape in Bangladesh.
