Understanding Tilt Meter Testing: Monitoring Structural and Ground Movement

Tilt meters are precision instruments used to determine a surface or structure's angular displacement or tilt with respect to gravity. They are used in geotechnical and structural engineering to identify slight variations in slope that could be signs of deformation, ground movement, or structural settlement. They are frequently employed in high-rise building monitoring, dam, bridge, tunnel, retaining structure monitoring, and slope stability assessment. Engineers can identify early indicators of instability and take corrective action before significant damage occurs thanks to continuous tilt measurements.

Advanced tilt meters, including MEMS-based tilt meter and vibrating wire tilt meter models are renowned for their high accuracy, robustness, and easy integration with data acquisition systems. Tilt meters are perfect for important projects like landslide-prone slopes, delicate heritage structures, and extensive infrastructure with strict safety requirements because they allow remote, real-time monitoring when combined with automated data loggers.

Market Size and Growth:

Global Market Overview:

The demand for tilt meters is growing in line with global infrastructure expansion and the need for continuous structural health monitoring. As part of the broader geotechnical instrumentation market—valued at over USD 4 billion in 2023—tilt meters hold a strong position due to their versatility in both surface and subsurface applications. Industry projections suggest the sector will surpass USD 6.5 billion by 2030, with a CAGR of 6–8%, driven by automation, IoT integration, and stricter safety regulations.

Key Growth Drivers Worldwide:

1. Increased Use in Slope Stability and Landslide Monitoring

Rising landslide risks due to climate change, heavy rainfall, and urban expansion have made tilt meters vital for early warning. They detect minute angular changes before failure, helping protect slopes, embankments, and cuttings in high-risk regions.

2. Smart Integration with IoT Platforms

Modern tilt meters integrate with IoT systems for automated data logging, wireless transmission, and cloud-based dashboards. Real-time alerts system of tilt meter enables rapid response to abnormal tilt patterns, improving risk management and remote site oversight.

3. Growth in High-Rise and Underground Infrastructure

Urban development increasingly involves tall buildings, tunnels, and deep basements—projects sensitive to settlement and tilt. Tilt meters provide continuous angular displacement data to verify structural performance during and after construction.

4. Regulatory Requirements for Structural Health Monitoring

Governments now mandate monitoring of bridges, dams, tunnels, and public buildings in hazard-prone zones. Tilt meters are used to meet compliance standards for both new builds and aging infrastructure.

5. Advances in Sensor Technology

MEMS tilt sensors now offer higher sensitivity, lower drift, and reduced cost. Coupled with low-power wireless systems, tilt meters can operate for long periods with minimal maintenance and fit easily into retrofits.

6. Shift Toward Predictive Maintenance

Owners are adopting condition-based maintenance strategies. Tilt meter data feeds predictive models, helping forecast problems before they occur and optimizing asset management.

Bangladesh Market Perspective:

In Bangladesh, tilt meter usage is increasing alongside major urban development, bridge construction, metro rail, and riverbank protection projects. Given the country’s geotechnical challenges—soft soils, flooding, and high seismic vulnerability—monitoring even slight structural or ground movement is critical to public safety and project durability. Mainly tilt meter user are LGED, HBRI, PWD, BBA, RHD, DMTCL, BRTA, BIWTA, CAAB, BWDB, RAJUK, City Corporation and other private consultancy company.

Tilt meters are being adopted by:

• Bridge and flyover construction teams.
• Metro rail and elevated road projects.
• Riverbank erosion and embankment monitoring authorities.
• Building developers and structural audit teams.
• Heritage conservation and critical facility monitoring.

Role of ICONIC ENGINEERING LTD I Tilt-meter Test:

High-precision tilt meter solutions are available in Iconic Engineering Ltd., an authorized supplier and service provider in Bangladesh. The section provides full monitoring packages, including sensor supply, tilt meter installation, calibration, and data management, in close collaboration with customers.

Key Contributions Include:

• Bringing in and distributing vibrating wire tilt meters and MEMS tilt meter.
• Offering baseline calibration, alignment, and installation services.
• Providing long-term technical support as well as tilt meter data collection and analysis.

Contributing to Digital Bangladesh:

Through the promotion of smart tilt meters with wireless connectivity and cloud-based reporting, Iconic Engineering Ltd. is modernizing geotechnical monitoring in Bangladesh. These developments further the goal of Digital Bangladesh by:

• Digital Data Logging: Automated tilt meter measurement storage and retrieval that is ongoing.
• Real-Time Alerts: Prompt notifications of unusual tilt circumstances.
• System Integration: Smooth communication with dashboards for structural monitoring, BIM, and GIS.

Test Procedure for Tilt-meter Testing:

1. Site Selection and Preparation

Determine which slopes or structures need tilt monitoring. For precise readings, pick mounting locations that are stable.

2. Installation of Sensors

Use bolts or brackets to firmly mount the tilt meter. Make sure the measurement axis is properly aligned.

3. Measurement of Baselines

To create a reference position, take preliminary readings after installation of tilt meters. This serves as the benchmark for subsequent data.

4. Data Collection

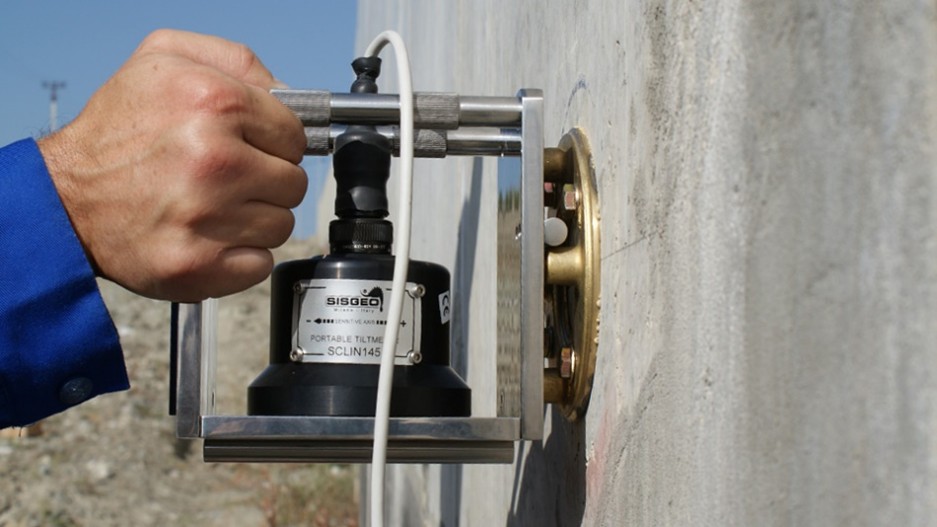

Either manually using a portable readout device or automatically using data loggers, readings are recorded.

5. Schedule of Monitoring

Depending on the degree of risk, tilt measurements are made daily, weekly, or continuously.

6. Data Analysis

To find movement patterns and potential instability, compare other tilt meter readings to the baseline.

7. Reporting:

 Create tabular and graphical summaries of tilt meter data for engineering evaluation and decision-making.

Outcome of Tilt-meter Test:

Tilt meter testing provides precise, real-time information on inclination changes in structures and slopes. Common outcomes include:

• Early structural deformation detection prior to obvious damage.
• Evaluation of slope stability in regions vulnerable to landslides.
• Monitoring the effectiveness of excavation supports, dams, and retaining walls.
• During and after construction, design assumptions are confirmed.

Advantages of Tilt Meter Testing:

• High sensitivity to even the smallest changes in inclination; non-destructive; appropriate for long-term structural monitoring.
• Field installation is simple and portable.
• Adaptable to automated and manual tilt data systems.
• Makes it possible to manage risks in critical infrastructure in real time.
• Useful in a variety of fields, including heritage preservation and construction.

Future Scope of Tilt Meter Testing:

• AI-Driven Data Analysis: Predictive modelling for structural health and failure prevention using AI-driven data analysis.
• Complete IoT Integration: Automatic data syncing with monitoring platforms and remote access for tilt meter.
• Increased Sensor Durability: Better results in corrosive and harsh environments.
• Hybrid monitoring systems: Integrating displacement and vibration sensors with tilt meters to provide a thorough safety evaluation.

Conclusion:

Since tilt meter testing provides extremely precise information on inclination changes that can indicate early movement or instability, it is a crucial part of geotechnical and structural health monitoring. It is essential for protecting both natural slopes and man-made structures because it can provide continuous, non-destructive measurements. Tilt meters will become even more important in predictive maintenance, disaster prevention, and long-term infrastructure resilience as sensor technology, automation, and IoT connectivity continue to advance.
